    Malt Silo

    Application

    HKB Grain Silo is widely used for grains storage such as wheat, corn, soybean, paddy, rice, soybean meal, barley, malt, sunflower seeds, rapeseeds, peanuts, flour, and other powder materials, oat, special grain, and seeds, etc.

    PDF Download
    Product Introduce

    HKB grain silo is made of high-quality 275g/m2, 300g/m2, 350g/m2 hot-dip galvanized steel, widely used for grain storage such as wheat, corn, soybean, paddy, rice, soybean meal, barley, malt, sunflower seeds, rapeseed, peanuts, flour, and other powder materials, oat, special Silo, and seeds, etc. It has corrosion resistance, high shock resistance, and long service life.
    Henan Haokebang Machinery Equipment Co., Ltd. is located in Henan, China. It specializes in producing grain processing equipment such as grain dryers, silos, tubular dryers, mesh belt dryers, and grain cleaning screens. It can provide users with a single equipment solution and equipment for a complete set of grain washing, drying, storage, and selection systems. As well as professional customized service technical support, reliable spare parts supply, and high-quality after-sales service. Look forward to working with you!

    Malt silo composition

    Silo roof:

    The roof beams are made of C-shaped steel, the upper part is connected to the top ring of the silo, and the lower part is connected.With the pillars of the silo, the beams are connected horizontally through angle steel to form the frame of the top of the silo.

    Silo body:

    The silo enclosure is made of 275g/m2 galvanized steel plate.The stress of each layer of the hoarding becomes progressively thicker from top to bottom.

    Access Ladders and Doors:

    Cob brand high-strength galvanized ladders feature roll-formed sides and stamped rungs that eliminate rung rotation for easier climbing.The access door gives access to the second ring to the interior of the silo.

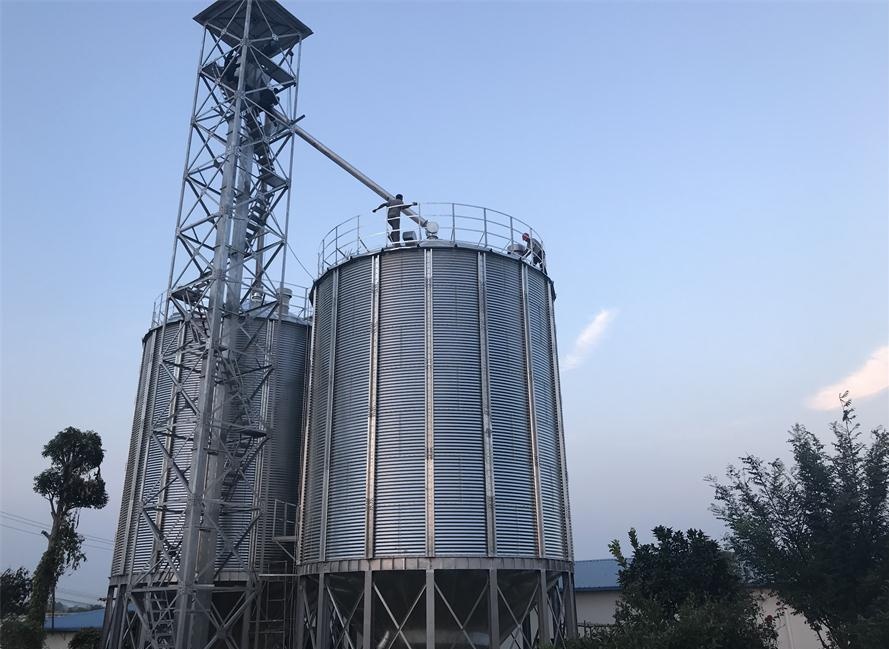

    malt silo

    Functions of malt silo

    Moisture-proof and insect-proof:

    The malt silo adopts a sealed design to effectively prevent the impact of humid climate on grain, prevent pests from invading, and protect grain

    quality.Thermal insulation:

    There is thermal insulation material inside the malt silo, which can effectively block external temperature changes, provide good thermal insulation effect, and protect grain quality.

    Easy to install and disassemble:

    The spliced ​​design makes the installation and disassembly of the malt silo very convenient, and can be quickly adjusted and relocated as needed.

    malt silo

    Characteristics of malt silo

    Strong durability:

    Made of high-quality galvanized sheets, it has good corrosion resistance and weather resistance, and can still maintain stability under different climate conditions.

    Good sealing:

    The granary is equipped with a complete sealing device, which can effectively isolate external moisture and pests, ensuring the quality and storage safety of grain.

    Flexible and adjustable:

    According to the actual needs of customers, granaries of different specifications and capacities can be customized to flexibly meet the needs of different scenarios.

    Safe and reliable:

    The granary adopts reliable structural design and reasonable support system to ensure that the granary is stable and reliable during use and is not prone to tilt or damage.

    Technical Parameter

    Scientifically speaking, the Grain Silo capacity should be measured with volume (m3). Even in the same grain Silo, the storage tons will be different for different grains with different densities. The following table is calculated based on a  Silo density of 0.75kg/m3, and surely HKB customizes  Silo systems unique for you.

    Most Popular Hopper Bottom Steel Silo Technical Specifications
    Capacity 50Ton 100Ton 150Ton 200Ton 300Ton 500Ton 1000Ton 1500Ton
    Model TCZK

    03605

    TCZK

    04507

    TCZK

    05507

    TCZK

    06406

    TCZK

    07307

    TCZK

    07313

    TCZK

    11010

    TCZK

    12811

    Diameter(m) 3.667 4.584 5.500 6.417 7.334 7.334 11.000 12.834
    Total Height(m) 9.56 12.53 13.25 12.85 14.70 21.42 20.95 23.51
    Volume(m³)

    Density:0.75ton/m³

    69 150 222 273 415 699 1346 2039
    Most Popular Flat Bottom Steel Silo Technical Specifications
    Capacity 1000Ton 1500Ton 2000Ton 2500Ton 3000Ton 5000Ton 8000Ton 10000Ton
    Model TCK

    10014

    TCK

    11915

    TCK

    13715

    TCK

    15514

    TCK

    15518

    TCK

    18321

    TCK

    24718

    TCK

    25621

    Diameter(m) 10.084 11.918 13.750 15.584 15.584 18.334 24.751 25.668
    Total Height(m) 18.69 20.34 20.87 20.30 24.78 28.60 26.99 30.60
    Volume(m³)

    Density: 0.75ton/m³

    1335 2009 2701 2467 4145 6693 10879 13484
    After-sale Service
    • – HKB provides advanced grain safety storage technology to assure your grain silo 100% quality stability.
    • grain silo Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
    • – 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
    • – Routinely telephone track to remove all might be problems grain silo or issues guarantying the whole system grain silo long-lasting safety and reliability.
    • – HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the grain silo system well.
