Grain Silo

Application

HKB grain silo is widely used for grains storage such as wheat, corn, soybean, paddy, rice, soybean meal, barley, malt, sunflower seeds, rapeseeds, peanuts, flour, and other powder materials, oat, special grain, and seeds, etc.

Inquiry [email protected] +8613598071775

PDF Download 

Product Introduce

HKB grain silo are made of high quality 275g/m2, 300g/m2, 350g/m2 hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is support by the steel silo stiffeners which are evenly vertically applied in the grain silo. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose.These plates and stiffeners are connected by high-strength screw bolts to keep the flat grain silo strong and durable. The hopper bottom grain silo are equipped with flat repairing doors, outside ladder and ladder guard rings.

Feature

1.Assembly, easy to ship and save freight.

2.Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF &RUST-PROOF.

3.Hopper bottom has low cost price.

4.Falt bottom has large capacity from 1500T-20000T.

5.can store grain safely and save labor cost and space.

Application

HKB Silo is widely used for grain storage such as wheat, corn, soybean, paddy, rice, soybean meal, barley, malt, sunflower seeds, rapeseed, peanuts, flour, and other powder materials, oat, special Silo, and seeds, etc.

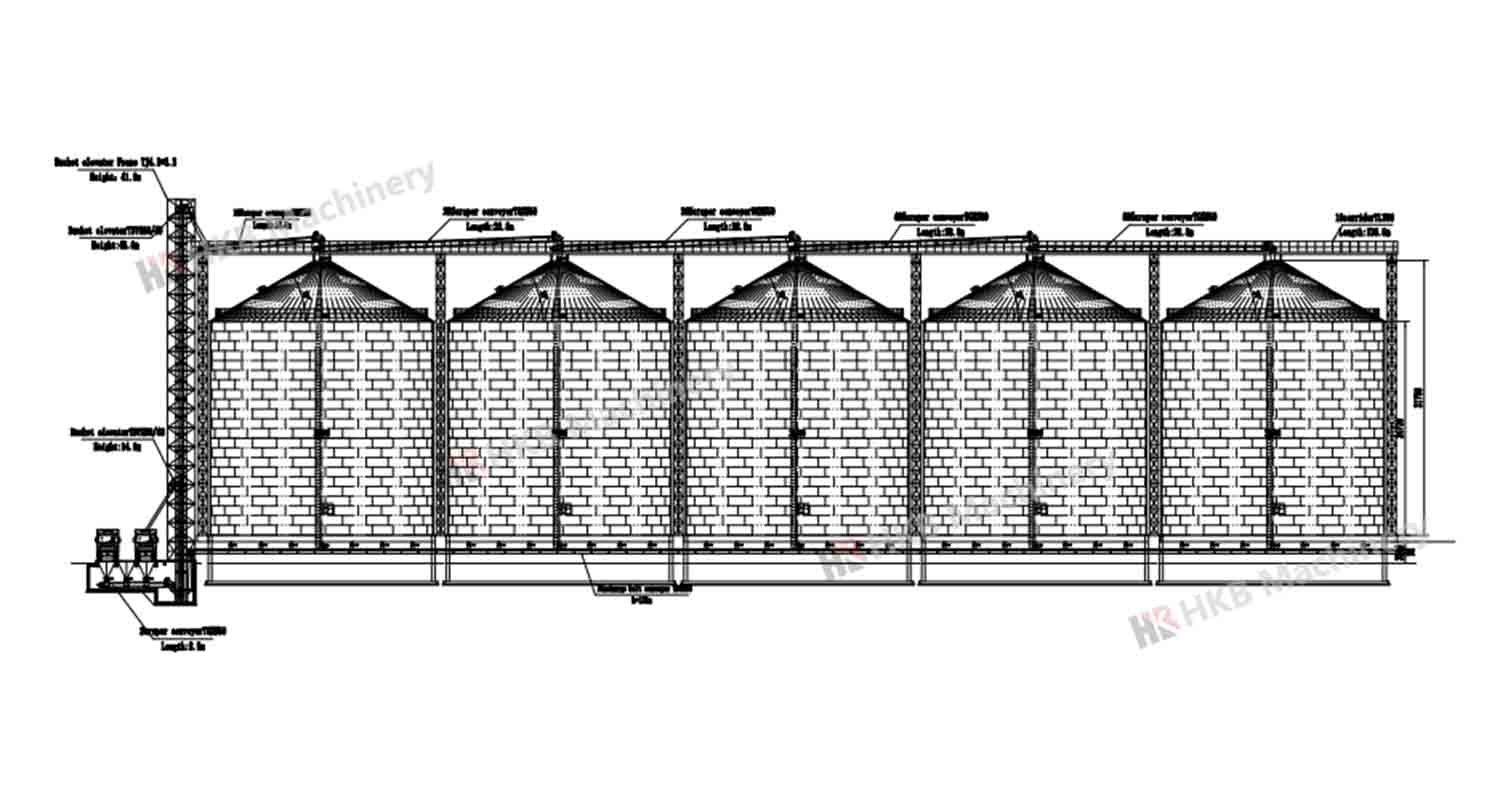

Structure

How do we assure the grain silo solidity?

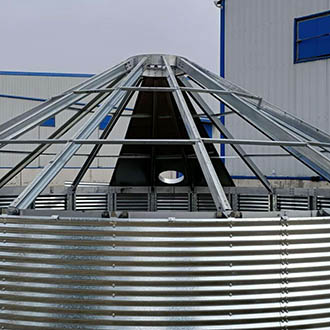

1- Roof Top: the roof is designed to stand up even the harshest environment of extreme snow disaster with the echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. grain silo Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.

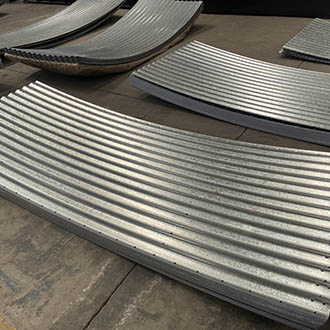

2- Body Steel Plate: A commercial 275g/m2 double galvanized steel coating increases life and durability. 450g/m2 and 600g/m2 coating available for customized orders. Each sidewall sheet is manufactured from high-tensile steel that can overcome extreme power, pressure.

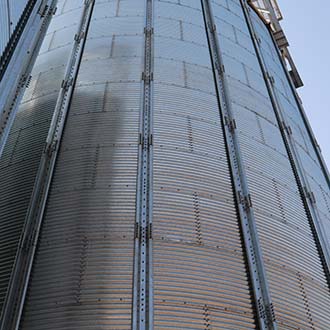

3- Stiffeners: HKB’s high tension stiffener(can be located inside or outside the grain silo,) profiles make bins stronger allowing to stand well even under an extreme hurricane. Base stiffener boots are coated so they won’t rust over time.
4- Wind Ring: For tall grain silo or that need to resist heavy wind. Wind ring and brackets reduce bolt holes in stiffeners; Swaged technology ensure grain silo power load capacity.

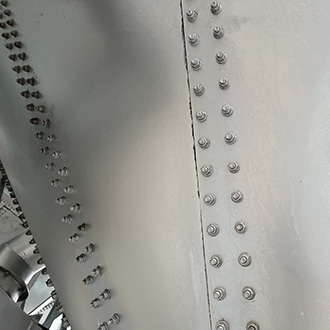

5- High strength bolts and screws: HKB’s high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grain silo bin stands the test of time.
6- Manhole: Double layer security locking manhole system.

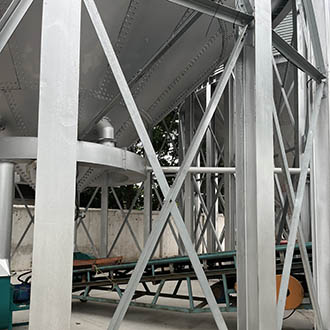

7- Wide Flange H Beam Support Structure: The wide flange H-Beam support structure has the strength and durability to support the heavy hopper bottom silo loads for a long time, and with consideration of wind and seismic requirements.

grain silo sales

Technical Parameter

Scientifically speaking, the Grain Silo capacity should be measured with volume (m3). Even in the same grain Silo, the storage tons will be different for different grains with different densities. The following table is calculated based on a Silo density of 0.75kg/m3, and surely HKB customizes Silo systems unique for you.

Most Popular Hopper Bottom Steel Silo Technical Specifications
Capacity	50Ton	100Ton	150Ton	200Ton	300Ton	500Ton	1000Ton	1500Ton
Model	TCZK 03605	TCZK 04507	TCZK 05507	TCZK 06406	TCZK 07307	TCZK 07313	TCZK 11010	TCZK 12811
Diameter(m)	3.667	4.584	5.500	6.417	7.334	7.334	11.000	12.834
Total Height(m)	9.56	12.53	13.25	12.85	14.70	21.42	20.95	23.51
Volume(m³) Density:0.75ton/m³	69	150	222	273	415	699	1346	2039

Most Popular Flat Bottom Steel Silo Technical Specifications
Capacity	1000Ton	1500Ton	2000Ton	2500Ton	3000Ton	5000Ton	8000Ton	10000Ton
Model	TCK 10014	TCK 11915	TCK 13715	TCK 15514	TCK 15518	TCK 18321	TCK 24718	TCK 25621
Diameter(m)	10.084	11.918	13.750	15.584	15.584	18.334	24.751	25.668
Total Height(m)	18.69	20.34	20.87	20.30	24.78	28.60	26.99	30.60
Volume(m³) Density: 0.75ton/m³	1335	2009	2701	2467	4145	6693	10879	13484

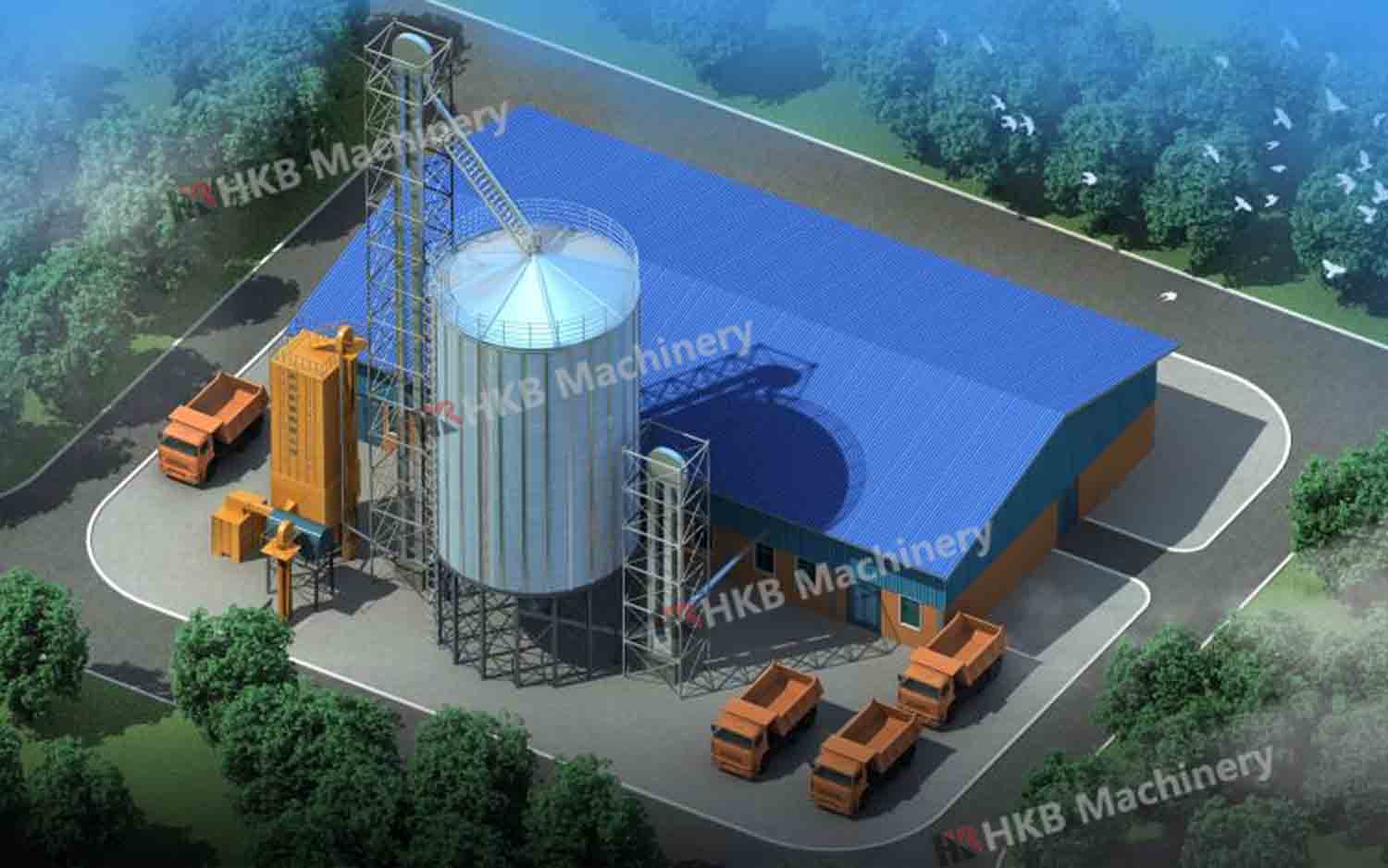

Optional Accessories

Henan Haokebang Machinery Equipment Co., Ltd. specializes in the production of 100-10,000 ton hopper bottom and flat bottom corrugated galvanized steel grain Silo. According to various factors such as site, weather, and geology, we provide professional grain Silo design, equipped with elevators, unloading pits, pre-cleaner, conveyors, sweeping auger and other accessories to meet the diverse needs of customers.

After-sale Service

 – HKB provides advanced grain safety storage technology to assure your grain silo 100% quality stability.
 – grain silo Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
 – 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
 – Routinely telephone track to remove all might be problems grain silo or issues guarantying the whole system grain silo long-lasting safety and reliability.
 – HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the grain silo system well.
